Architects

Welcome architects and interior designers, to our closet door page made especially for you.

Saving time, so you can design effectively and not waste your time trying to find information other manufacturers often keep hidden. Specs, REVIT files, technical drawings, everything you need in one place. See Below.

White closet with four vertical doors in a room with hardwood flooring.

Durable Closets

Our solid core closet doors, are built to last. Some original towers shown below have been installed floor to ceiling for over 60 years and counting, with minimal maintenance or replacements. The full length piano hinge, keeps the panels secure. The extruded aluminum track, has a nylon guide so that the bifold cannot fall out of the track, aiding in the durability.

Technical Info

Diagram of MAGGLIDE bi-fold closet door system hardware, showing various components like top track, pivot guide, vinyl bumper, door stop, spring assembly, pivot brackets, door pull, door aligners, and other accessories with labels and part numbers.

All Hardware Included

Magiglide closet doors come with all hardware necessary for the door to form and function, including a satin nickel pull. This means no extra hardware specifications or confusion. Our specification has all hardware included because we manufacture it proprietary for OUR closet doors.

Hardware

Technical drawing of a bifold closet with two panels, showing measurements and door placement

REVIT Files

There are (4) Curtain Wall types that comprise the pivot and bifold panel options. They are named and configured to match available options and automatically embed within host walls.

REVIT FILES

Laundry room with stacked washer and dryer behind white folding doors, next to a small vent and a closet with shelves in the background.

Building Code Closet Door Requirements

Every state has different building code requirements. Click above to see what they are in your state, and to see what kind of air flow requirements are necessary for your project.

BUILDING CODE

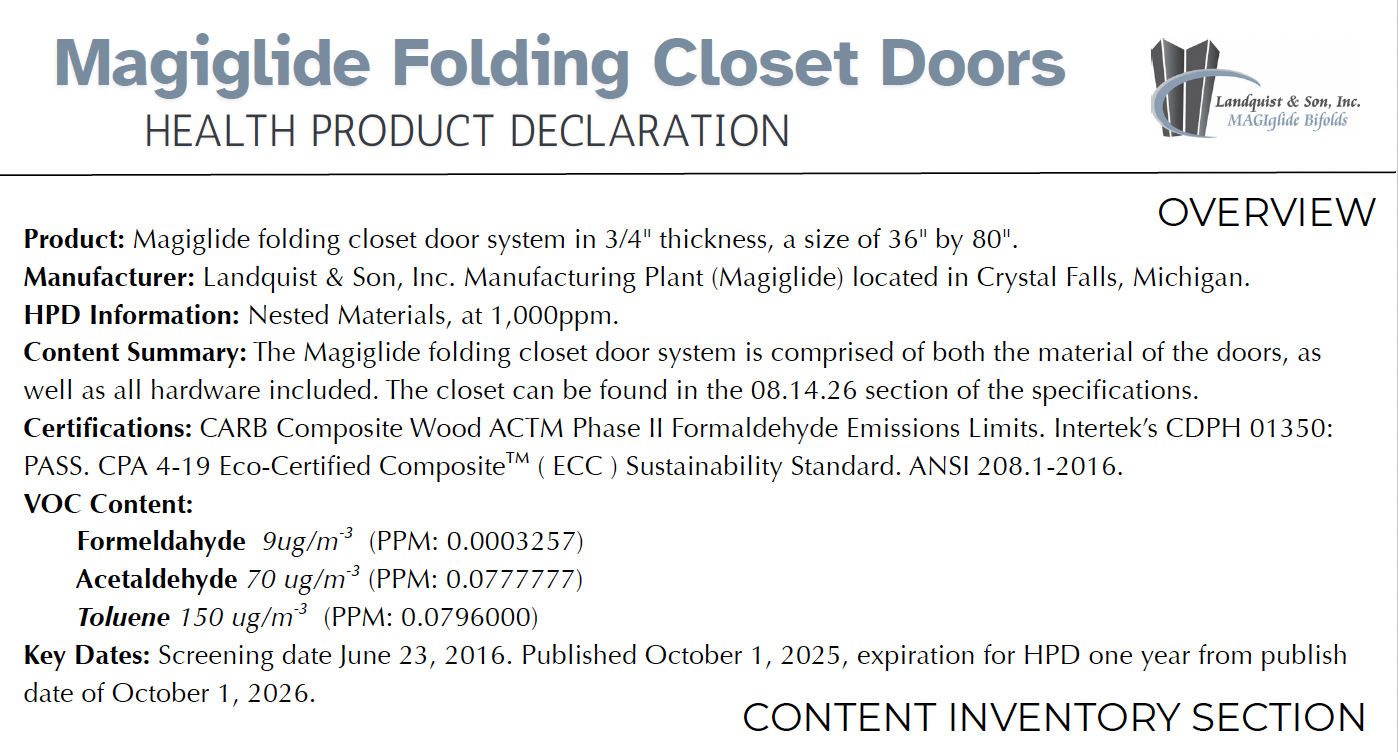

Document titled 'Magiglide Folding Closet Doors' with description of product, manufacturer, and safety standards, including logos and specifications.

Health Product Declarations

Click here to gain access to our most up to date HPD. Valid October 2025-October 2026. This breaks down all materials in the Magiglide folding closet door system and what ingredients are in them. Full transparency here.

HPD

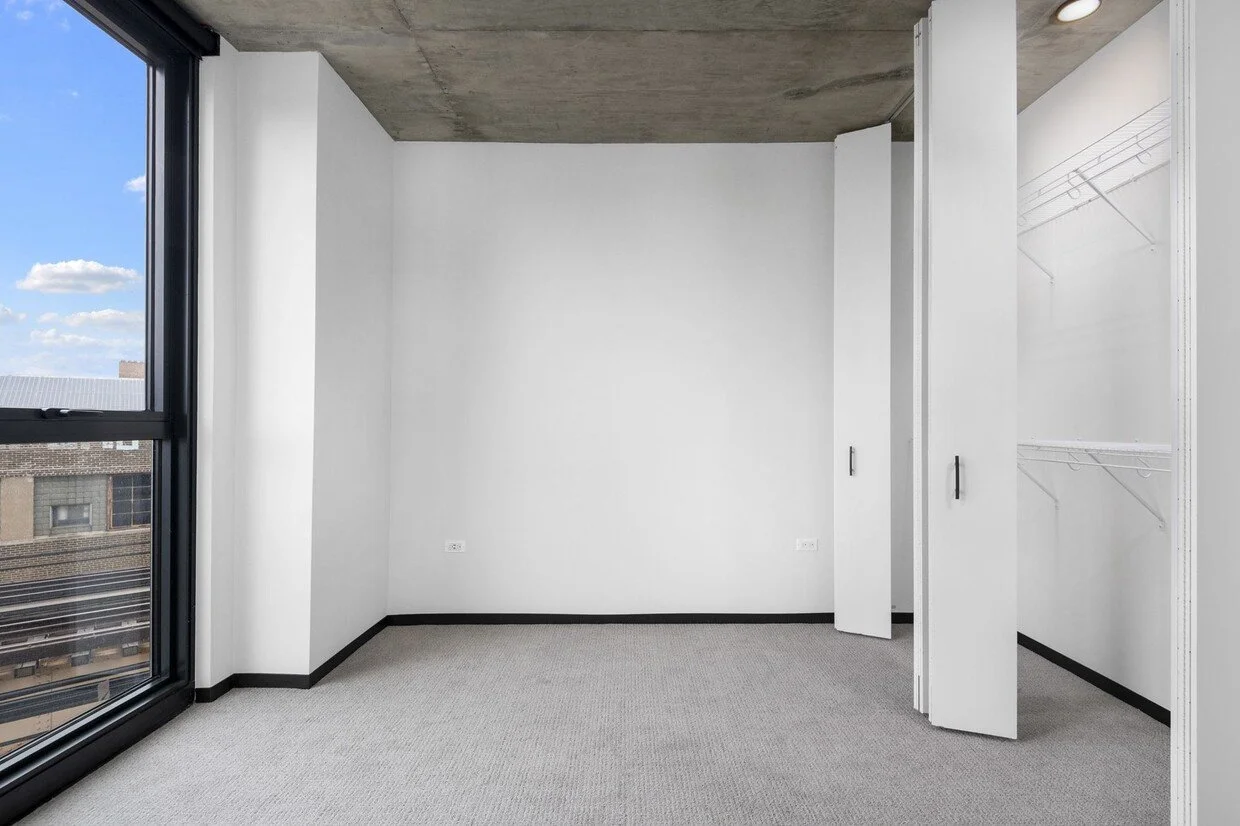

Empty room with gray carpet, white walls, large window with city view, overhead light, and open closet doors with wire shelves.

Custom Options

What sets Magiglide closet doors apart from the rest? The closets are all custom sized to the nearest 1/4” in width, and the nearest 1/2” in height. This allows you to design the closet doors where you want, instead of holding your opening to a standard. For example, it is the same for for the doors to go 8 ft tall, so why not maximize storage for the tenants while not spending extra time in drawings and REVIT to drop a header?

Custom sizes

Detailed technical engineering blueprints with multiple schematics and measurements.

Specifications

Landquist and Son has 3 different specifications to choose from. A basis of design model, will allow the specifier to select and easily modify the spec for each project. This allows the specifier to see all options capable through our Magiglide closet doors.

BIFOLD

PIVOT

BIPASS

Guide on installing a 2-panel bifold door, showing measurements for width (32 inches), height (80 inches), and air flow (102 square inches of free air) in American English.

Air Flow Calculator

Click above to see the measurements needed in order to comply for the closet doors to remain unvented.

AIR FLOW

Warranty

Magiglide closet doors offer every order a 10 year, no nonsense manufacturer’s warranty for the bifold and pivot closet door.

Warranty

Map of the United States with each state labeled with its name in bold, black text.

CEU

Our sales representatives provide lunch and learn for architects and interiors firms throughout the nation. Check here to see if the lunch and learn will count for a CEU in your state

CEU

Detailed sectional diagram of a 3/4" bifold door assembly showing components such as wood stud, drywall, aluminum track, track stop, door stop, pivot brackets, pivot pins, particleboard door, washers, studs, floor plate, and finished floor with measurements.

Section Drawings

Wondering how easy it is to access section drawings of any of our closet doors? Click above for the PDF.

SECTIONS

Close-up of a folded American flag with stars and stripes.

BABAA

Our closet doors are fully compliant with Build America By America Act. Fully manufactured and sourced in the United States of America. If you need a certificate for a project, please contact below.

BABAA

ADA

Click above for a direct link showing our compliance to ADA standards.

ADA

Case Study

Adaptive Reuse, Mary H. Thompson hospital to Thompson Fulton Market apartments.

Black and white photo of a large, historic, multi-story brick apartment building with turrets and dormer windows, surrounded by a sidewalk and street with a few pedestrians, an old car, and utility wires overhead.

Headshots of three men, each with their name and titles below: Nick Ryan, Founder & Executive Chairman; Trevor Ryan, President, Marquette Companies; James J. Cunningham, President, Marquette Management.

Chicago, IL

2024

Mary Thompson Hospital, opened in 1865 provided medical care to indigent women and children as well as clinical training to women doctors. Mary Harris Thompson, for whom it is named, founded the hospital because at the time, women were not yet permitted to be on any Chicago’s hospital staffs. Her objective was to serve widows and orphans of the Civil War soldiers who had died in battle.

Due to the historical nature of the building, when Marquette Companies bought the building and land in 2021 they had a decision to make. They could either demolish the whole hospital and start fresh, or build around the structure because of the historical importance of the building.

The team involved in this adaptive reuse transformation, utilized our Magiglide closet doors, in order to place in a high quality closet door, that is custom sized in order to optimize closet storage space for tenants. The following companies worked with Landquist, to bring this partnership to fruition:

Developer: Marquette Companies

Architect: Park Fowler Plus formerly Brininstool + Lynch

General Contractor: Power Construction

Closet Door Supplier: American Building Services

MAGIGLIDE CLOSET DOORS IN FLOOR PLANS

〰️

MAGIGLIDE CLOSET DOORS IN FLOOR PLANS 〰️

Floor plan of a small apartment including a kitchen, living area, bathroom, and laundry area.

STUDIO

Empty closet with open white doors, a wire shelf, and a concrete ceiling.

Floor plan of an apartment with labeled areas: patio/balcony, living room, bedroom, kitchen, bathroom, mechanical closet, and washer/dryer area.

Floor plan of an apartment showing a patio, living room, kitchen with island, bedroom, bathroom, walk-in closet, mechanical closet, and washer/dryer area.

1 BEDROOM

Interior view of a modern living room with a white couch, coffee table, armchair, framed photos on the wall, plants, and large windows in the background.

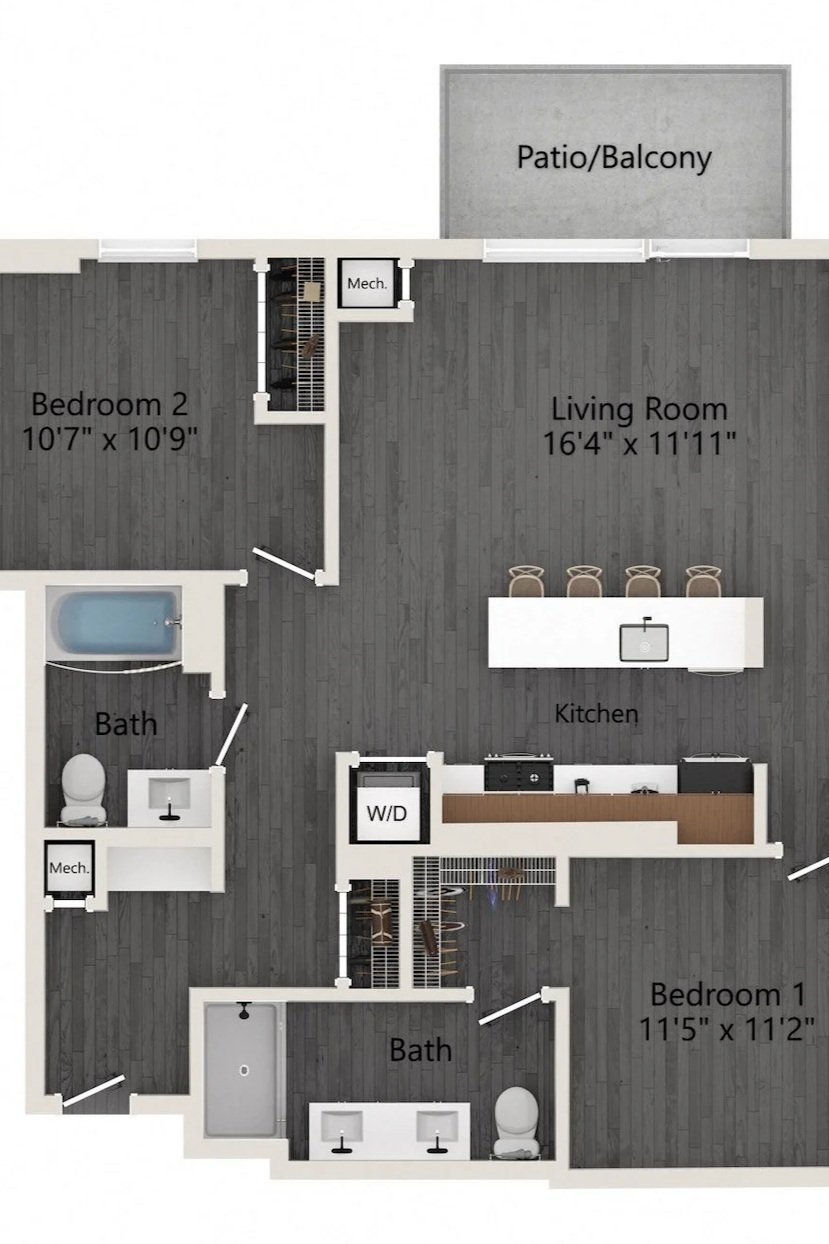

Floor plan of an apartment showing two bedrooms, two bathrooms, a living room, a kitchen, a washer and dryer, mechanical rooms, and a patio/balcony.

Empty white closet with open bi-fold doors and a single wire shelf inside, with a hardwood floor in a room with a gray ceiling.

Floor plan of a house with three bedrooms, two bathrooms, a kitchen, a living room, a mechanical room, and an outdoor patio/balcony.

Empty closet with white doors open, wire shelves inside, and a dark wood floor.

A high-rise modern apartment building with balconies, alongside an older brick building, in an urban area with other buildings and a cloudy sky.

The S2 floor plan, is a studio unit. It has 1 bathroom, and comes in at 504 square feet. Magiglide bifold closet doors are found in this S2 floor plan, at the highlighted areas. The first, in a coat closet upon entry into the unit and again to the left of the closet for extra storage space in this studio unit.

Magiglide closet doors in Thompson Fulton Market

The A8 floor plan, is a 1 bedroom unit. It has 1 bathroom, and comes in at 807 square feet. Magiglide bifold closet doors are found in this A8 floor plan, at the highlighted areas. The main set being in the kitchen, floor to ceiling. The closet doors are installed straight into ceiling, allowing for maximum closet storage space for this urban floor plan.

Open closet doors revealing a lofted bed with pillows on top and a wire shelf underneath, in a room with a concrete ceiling and white walls.

The B1 floor plan, is a 2 bedroom unit. It has 2 bathrooms, and comes in at 1100 square feet. Magiglide bifold closet doors are found in this B1 floor plan, at the highlighted areas. The main set being in the kitchen, floor to ceiling. The bifold closet doors are installed in bedroom two, as well as in the main entrance as a coat closet.

A white closet with four doors and black handles in a room with white walls and brown wooden flooring.

The C2 floor plan, is a 3 bedroom unit. It has 2 bathrooms, and comes in at 2098 square feet. Magiglide bifold closet doors are found in this C2 floor plan, at the highlighted areas. The bifold closet doors are found in bedroom 2 and 3, in both bathrooms, in front of the washer and dryer and in the hallway.

Part of a bathroom with a white closet door and a glass shower enclosure with tiled walls in shades of blue and gray.

Construction site with a tall building under construction, blue sky, a crane, and nearby older brick building.

Kudos to the 3 partners Nick Ryan, Trevor Ryan, and James Cunningham who made the right decision. The project became part adaptive reuse of a century-old hospital structure and part new construction. The developer demolished only a wing of the hospital and was able to construct a new 12 story building, while keeping the healthcare roots visible through an angraving on the remaining hospital structure that reads. ‘Founded by Dr. Mary Thompson.’

The closet doors shown to the right, are installed into LVT flooring, with a standard floor plate. The track was installed straight into concrete in the ceiling. No extra drywall needed to drop the header when you use Magiglide closet doors. The doors are excellent value and a great Value Engineering option from the Pre-Design phase. Park Fowler and Marquette Companies have used our Magiglide closet doors in numerous buildings, and have been pleased with the ending result.

Diagram showing two elevator doors with installation points marked, then a person standing inside an elevator, and finally a different elevator door design with installation points.

Collage of photos showcasing apartments and buildings in Marquette Companies & Park Fowler Plus, including interior views of rooms and exteriors of the buildings, with text labels indicating locations such as Atrio, Forth at Navigation, EVO Union Park, and Parq Fulton.

A city street scene featuring a large brick building with multiple windows, and a newer multi-story apartment building with balconies in the background. A bus is parked on the street, and there are trees and streetlights along the sidewalk.

Floor plan of an apartment showing a combined kitchen and living area, a bathroom with a bathtub and toilet, a washer and dryer, and closet spaces.

Empty closet with white walls, black handles, and a wire shelf. Surrounding cabinets. Hardwood and concrete floors.

Custom Bifold door installation in a completed unit. All door tracks and hardware Magiglide.

Floor plan of an apartment with two bedrooms, two bathrooms, a living room, a kitchen, a balcony, and laundry area used in takeoffs for openings to utilize Magiglide hardware and doors.

2 BEDROOM

Magiglide custom bifold doors panels and hardware installed

3 BEDROOM

Floor plan of an apartment with three bedrooms, two bathrooms, a living room, kitchen, patio/balcony, and closets. Used in the planning phase of the project top show Magiglide options for customization.

Magiglide custom bifold door system for residential closet systems

The Magiglide closet doors provided for this project, were all Advantage Series, 1-1/8” thick closet doors. This is the premium thickness offered. The finish manufactured is primed paintable melamine. This finish is considered finish, as it has 4 coats of resin over the overlay. However, if anything were to damage the face of the doors, they are also fixable. Some wood putty, sanding and paint and the doors will be fixed, good as new. Most of the bifold closet doors were supplied at 108” tall. This allowed for the deletion of the header above the closet doors, as shown above. This can help expedite construction and also optimize the space allotted for storage for the tenants.

A brochure cover displaying an interior view of a modern apartment kitchen with wooden cabinets, a stainless steel sink, and a small closet or pantry space, along with the address 150 Ashland, Chicago, Illinois and the name Thompson for Fulton Market. The brochure includes additional images of the apartment and city views.

As you can see from the projects showcased on the left, Magiglide closet doors have helped this Marquette and Park Fowler Plus duo, to elevate their closet door capabilities. They dream it, we manufacture it for them. At Landquist, we do not have any closet doors in stock. That means that every door manufactured is made for the project that was ordered. The multifamily projects to the left showcase Adaptive Reuse, Multifamily market rate projects in Chicago and Houston. We are thankful for being specified into these projects, and truly love to see our door designed in a way that is unlike any other bifold closet on the market.
